Mercedes Sprinter and Vito Electronic Turbo Actuator Repairs

A Sprinter or Vito that loses power, drops into limp mode and then drives normally again after being switched off and left to cool is showing the classic pattern of a failing electronic turbo actuator. The actuator is not available to buy separately from the turbocharger, so the dealer route is usually a complete turbo. Rebuilding the actuator you already have is the alternative. This page covers which engines carry an electronic unit, what the badge does and does not tell you, and the check to make on the turbocharger before anything goes in the post.

Which Sprinter and Vito Engines Are Listed With an Electronic Actuator?

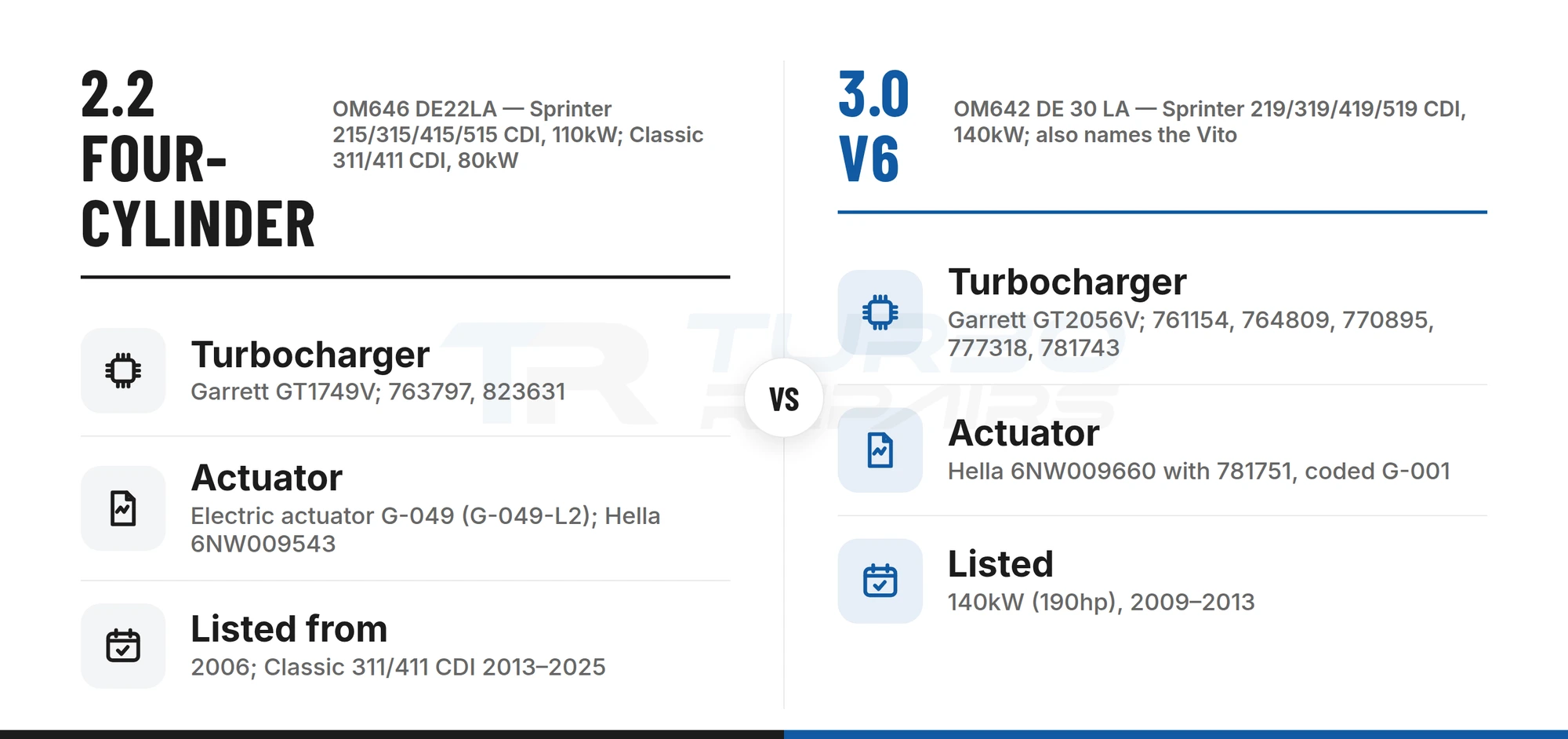

Three diesel families appear in the Sprinter actuator listings, and they do not all carry the same kind of part. Two are listed with electronic actuators on different Garrett turbochargers. For the third, an actuator is sold but its type is never given. The Vito appears in only one of them.

Read the table as a record of what the catalogues say, not as a promise about any one van. It does answer the question most owners arrive with. A Sprinter can carry an electronic actuator whether it has four cylinders or six, and on the 2.1 you have to look at the part itself. For the Vito, the only electronic unit the listings name belongs to the 3.0 V6. None of them names a four-cylinder Vito with one.

A connector settles the part type

Where a listing leaves the type open, the turbocharger answers it. An electronic actuator is a moulded unit with a wiring plug clipped into it. A vacuum-operated actuator is a metal can with a small hose and no wiring. We rebuild electronic actuators only. If yours runs on a hose, this service is not the right one, and if a unit arrives that we cannot rebuild, we tell you before any work is done.

A Heavier Sprinter Is Not a Different Actuator

A Sprinter badge carries three digits, and it is tempting to read the whole number as a specification. The actuator listings show that only part of it matters. On the 2.2, the 215, 315, 415 and 515 CDI are listed together at 110 kW and 150 hp, on one turbocharger and one actuator. On the V6, the 219, 319, 419 and 519 CDI are listed together at 140 kW.

The Sprinter Classic makes the point most clearly. The same G-049 listing names a 311 CDI as a 3.5-tonne panel van and a 411 CDI as a 4.6-tonne bus, both at 80 kW. So the first digit is the one that changes between those two vans, and it is also the one that never changes the actuator.

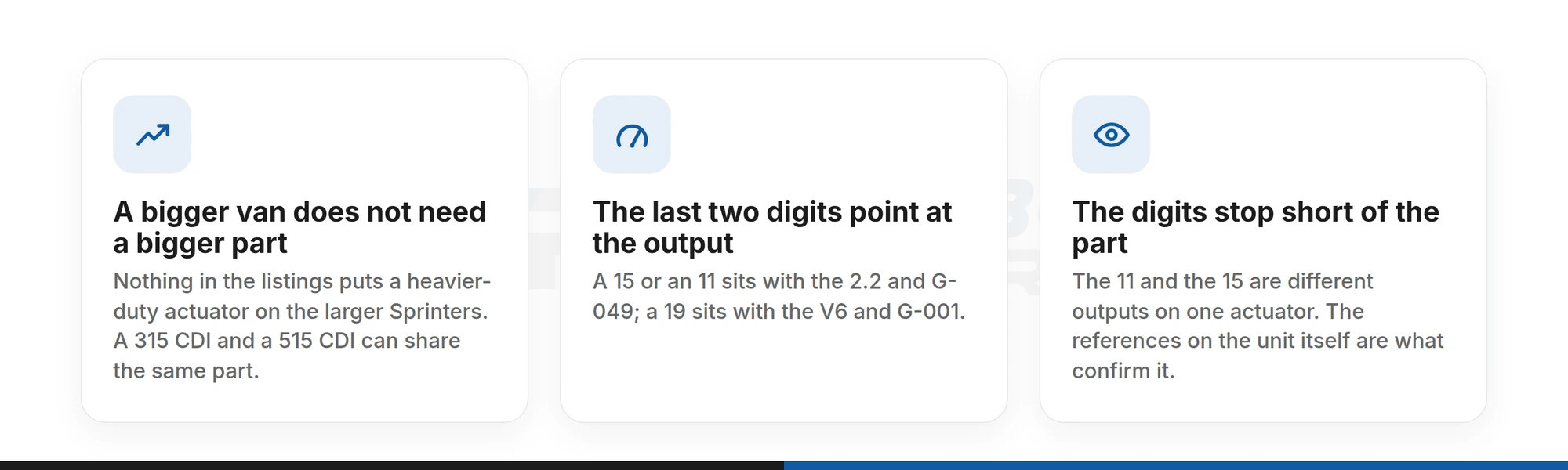

What that means when you are buying or searching

• A bigger van does not need a bigger part. Nothing in the listings puts a heavier-duty actuator on the larger Sprinters. A unit sold for a 315 CDI and one sold for a 515 CDI can be the same part.
• The last two digits point at the output, and the output points at the engine. In these listings a 15 or an 11 sits with the 2.2 and G-049, and a 19 with the V6 and G-001.
• The digits stop short of the part. The 11 and the 15 are different outputs listed on one actuator, and the 2.1 listing gives kilowatts rather than badges. The references on the unit itself are what confirm it.

The same 2.2, a different catalogue entry

The OM646 name also appears in car listings, and that is a trap for anyone buying second-hand. On the 2.2 C-Class, the catalogues record Hella actuators on Garrett 727461 and 742693 turbochargers under G-53, G-107, G-185 and G-271. The Sprinter listing puts G-049 on a GT1749V. The engine family matches, but the catalogued actuator does not, so a unit taken off a C 220 CDI is no evidence that it suits a 315 CDI.

What the Fault Looks Like on a Sprinter or Vito

The Sprinter fault starts intermittently. The engine loses power and the van drops into limp mode. Switching off and letting the engine cool before restarting will usually reset it. That reset works less and less often over time, until the fault stays for good.

Alongside the power loss, the listings for these actuators describe:

• the engine management light, or the glow plug (coil) light, coming on with the fault;
• power cutting out when the engine is hot and when it is cold;
• loss of power under acceleration, or no boost at all;
• an actuator arm that does not move, or stops moving once hot;
• on automatic vans, gearbox problems arriving with the power loss.

On Mercedes-level diagnostic equipment the code most often recorded is 2510 – Boost Pressure Control. It says the engine control unit did not get the boost it asked for. That describes the control system rather than a component, so a failed actuator, stiff vanes and a split boost hose can all set it.

Read the codes before anything is cleared. Note whether the fault returns straight after a restart or only once the engine has been worked for a while. For how to read the pattern around a symptom, see our guide to turbo actuator symptoms.

The References That Tell a 2.2 Unit From a V6 Unit

Two labels are worth photographing, not one. The actuator carries its own references, and the turbocharger it bolts to carries another set. On a heat-aged van one of them is often easier to read than the other, and between them they separate the engine families quickly.

The last row is the quickest check if the actuator label has baked unreadable. On these listings the Mercedes turbocharger numbers begin with the same three digits as the engine family: 646 on the 2.2, 642 on the V6 and 651 on the 2.1. That tells you which row of the table your van belongs in before you even look at the actuator.

On the actuator itself, match on the G-code rather than a base number. 712120 in particular is shared across several unrelated Mercedes units. We have set out the 3.0 V6 actuator references in full on our CLS page, so they are not repeated here. If you are sending us your own unit, none of this has to be settled before posting. The actuator off your van already suits your turbocharger, and we confirm its references when it arrives.

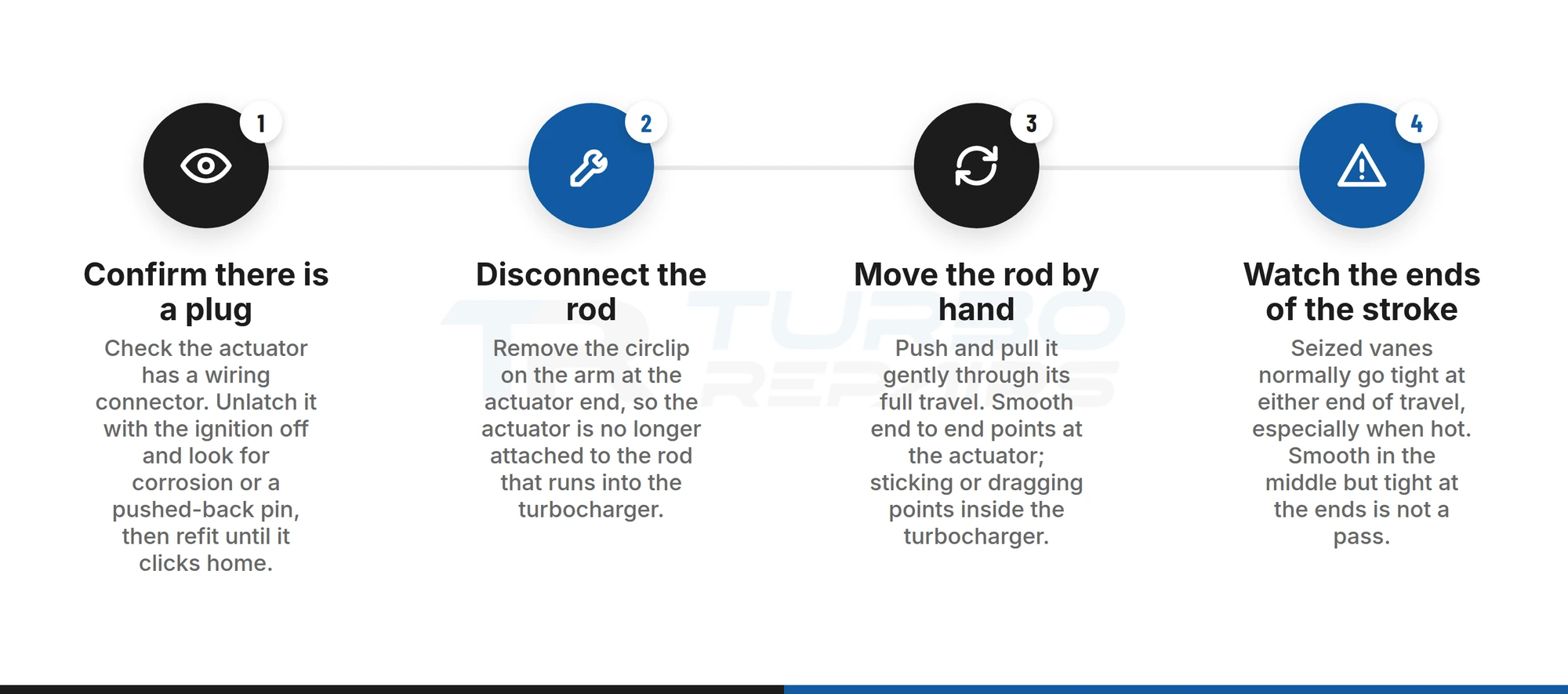

Seized Vanes or a Failed Actuator? Check the Rod First

A 2510 and a flat van can come from a failed actuator or from the vane mechanism it drives inside the turbocharger. Posting the wrong part costs you postage and days. The check that separates them takes a few minutes and does not need the actuator unbolted. Do it with the engine cold, because the turbine side of a turbocharger gets hot enough to burn.

1. Confirm there is a plug. Find the actuator on the turbocharger and check it has a wiring connector. While you are there, unlatch the connector with the ignition off and look for corrosion, a pushed-back pin or a cracked latch, then refit it until it clicks home.
2. Disconnect the rod. The fitting guidance published with the Sprinter V6 actuator is to remove the circlip on the arm at the actuator end, so the actuator is no longer attached to the rod that runs into the turbocharger.
3. Move the rod by hand. Push and pull it gently through its full travel. If it moves smoothly from end to end, the vanes are free and the actuator is the suspect. If it sticks, drags or stops short, the fault is inside the turbocharger.
4. Pay attention to the ends of the stroke. The same guidance says that where the vanes stick, they normally go tight at either end of their travel, especially when hot. A rod that is smooth in the middle and tight at the ends is not a pass.

A free rod on a cold engine is good evidence, but it is not proof. If your van only faults once it is hot, say so on the repair form, or have your garage repeat the check warm with proper protection. Do not drive the van with the actuator disconnected, because nothing is then controlling the vanes.

If the vanes are seized, a rebuilt actuator would fight the same resistance from its first mile, and the turbocharger is the part that needs the work. For the 2.2, it goes through our Sprinter 2.2 turbocharger rebuild. For the V6 and the Vito, use our turbocharger rebuild service.

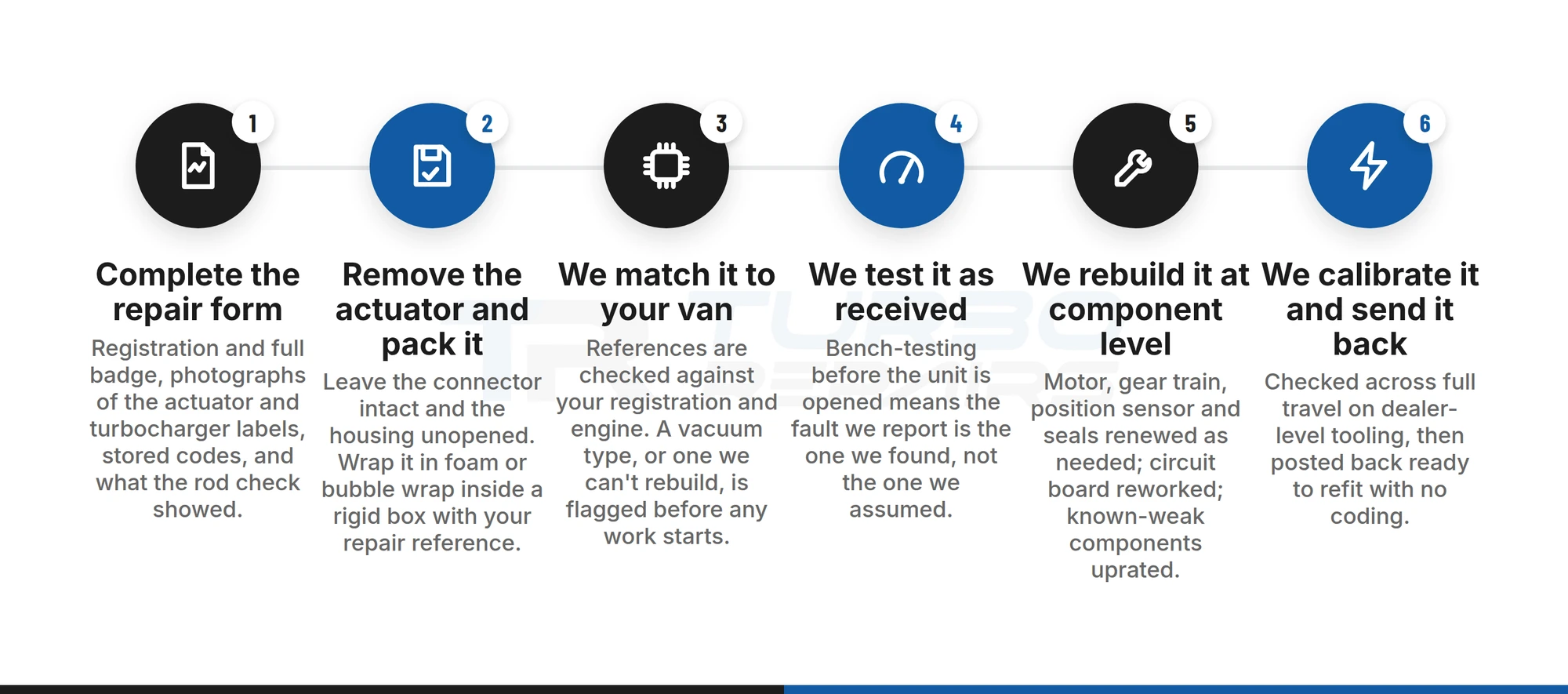

Our Sprinter and Vito Actuator Rebuild

This is a mail-in service. You or your garage remove the actuator and post it to our workshop at Unit 102 Reaver House, 12 East Street, Epsom, Surrey, KT17 1HX, United Kingdom. We do not work on vehicles, so the van stays with you while our team of turbo specialists and electronic engineers rebuilds the unit. Independent garages and main dealers send units in for their customers’ vans by the same route.

1. Complete the repair form. Give us the registration and the full badge, such as 315 CDI or 519 CDI, photographs of the actuator and turbocharger labels, the stored codes, whether a cool-down restart clears the fault, and what the rod check showed.
2. Remove the actuator and pack it. Leave the connector intact and the housing unopened. Wrap it in foam or bubble wrap inside a rigid box, with your repair reference on a note inside. Our FAQs page covers packing and postage in more detail.
3. We match it to your van. The references are checked against your registration and engine. If the unit is a vacuum type, or one we cannot rebuild, we tell you before any work is done.
4. We test it as received. Bench-testing before the unit is opened means the fault we report is the one we found, not the one we assumed.
5. We rebuild it at component level. The motor, gear train, position sensor and seals are renewed as needed and the circuit board is reworked. Components with a known weakness in the original design are replaced with uprated parts, so the unit meets or exceeds original specification.
6. We calibrate it and send it back. The rebuilt actuator is checked across its full travel on dealer-level diagnostic and calibration tooling, then posted back ready to refit with no coding. Once it is on, clear the stored codes with a diagnostic tool.

Repairs start from £100 + VAT. The exact price is confirmed once the unit has been identified and tested, so you know it before any work goes ahead. Turnaround is typically one to two working days from the actuator reaching us, plus postage each way. Every rebuild carries a lifetime, unlimited-mileage warranty, with no mileage cap and no time limit, and we accept units posted from anywhere in the UK and from overseas. The other vehicles we cover are on our electronic turbo actuator repairs hub.

Mercedes Sprinter and Vito Turbo Actuator Repair FAQ

Final Thoughts

A Sprinter badge looks like a specification and mostly is not one. The first digit tracks the size of the van and never the actuator, and the rest points you at an engine family. Even that stops short: two outputs share one 2.2 unit, the V6 carries its own, and the 2.1 has to be checked by eye. The Vito, as far as the listings go, is a V6 question.

So work from the van rather than the model name. Look for the plug, photograph both labels, and move the rod by hand, watching the ends of its travel. If all three point at the actuator, the unit that suits your turbocharger is the one already bolted to it.
