Electronic Turbo Actuator Repair — Rebuilt at Component Level, Returned Ready to Refit
Summary: We rebuild electronic turbo actuators — the Garrett and Hella units fitted to most variable-geometry diesels, along with BorgWarner and Mitsubishi types — at our workshop in Epsom, Surrey. Fourteen model pages are listed below, and if your car is one of them, start there. If it is not, the reference stamped on your own actuator is what decides the rebuild. Repairs start from £100, take one to two working days on the bench, and need no coding when the unit goes back on.
A list of fourteen cars is a route in, not a limit. The same handful of Hella and Garrett actuators is fitted across dozens of badges, so what decides whether we can rebuild yours is the reference stamped on your own casing — not whether your car is named on this page.
An electronic turbo actuator is the motorised unit bolted to the side of a variable-geometry turbocharger. The engine ECU commands a vane position; a motor and gear train move the link arm to reach it, and a position sensor reports back what the mechanism actually did. When the report stops matching the command, the ECU logs a boost-control code and usually drops the vehicle into limp mode. If you are still working out what a turbo actuator does at all, that explainer covers the job before the fault.
Actuator Repairs by Vehicle
Each page below covers the actuator fitted to that vehicle, what tends to fail on it, and what the rebuild involves. Start here if your car is on the list.
- BMW
- Chrysler and Jeep
- Chrysler 300C 3.0 CRD — a fault that only appears once the engine is hot, and how to record it while the car is still limping
- Jeep Grand Cherokee 3.0 CRD — why the actuator is usually the casualty rather than the cause, and how to prove the vanes are free
- Jeep Commander 3.0 CRD — cross-model fitment, and why a part catalogued under another badge can still be the right one
- Ford
- Ford Mondeo 2.0 TDCi — establishing whether you are holding a vacuum can or an electronic module before anything is quoted
- Ford S-Max 2.2 TDCi — testing the half of the circuit you post to us against the half still on the car
- Ford Transit — recalibrated to factory tolerance and proven under live boost targets before it ships

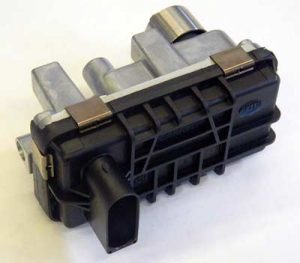

- Jaguar
- Mercedes-Benz
Six of those pages cover closely related hardware. The Chrysler 300C, Jeep Grand Cherokee and Jeep Commander 3.0 CRD all use the Mercedes-built OM642 3.0 V6, the same engine family as the 320 and 350 CDI Mercedes models above, so if your car is one of the six, its neighbours are often worth reading too.
Your Car Is Not on the List? Read the Reference on the Casing
No manufacturer designs a separate actuator for every model it sells. A small number of actuator families are supplied to the turbocharger makers and then fitted across whatever the turbocharger is bolted to, which is why the same unit turns up on a Jaguar, a Mercedes and a van. The badge on the boot is a poor guide to the part; the numbers on the unit are not.
| Actuator type | What the reference looks like |
|---|
| Hella unit on a Garrett variable-nozzle turbocharger — by far the most common on UK diesels | A short G-reference such as G-21 or G-221, usually alongside a Hella number in the 6NW 0xx xxx form (6NW 009 228, for example) and a six-digit number such as 712120 |
| Siemens-type actuator on a BorgWarner / KKK turbocharger | A spaced numeric reference in the 5304 970 xxxx form, frequently paired with a VAG-style 059 145 725 x number |
| Actuator on a Mitsubishi turbocharger | A hyphenated number in the 49135-xxxxx or 49335-xxxxx form |
On the Garrett and Hella units the G-reference is found on the side of the alloy base, and the longer numbers are carried on the label. Take a clear photograph of every marking rather than transcribing one and hoping it is the right one — the references are similar enough that a single transposed digit sends the wrong part to the wrong car.
Send us that photograph with the vehicle, the engine variant and any stored fault codes, and we will tell you what we can rebuild before you post anything. Where a reference is ambiguous, we will say so and ask for the unit in hand rather than guess at it. Contact us with your references and fault codes and we will come back to you.
Which of These Is Yours? Symptoms That Point at the Actuator
Actuator faults reach us in a small number of recognisable shapes. See which of these describes your car, then read the page for your model or send us the codes.
- A sudden, obvious loss of power, often with the vehicle dropping into limp mode
- Power that returns after the ignition is cycled, then goes again after a few miles
- Boost-control fault codes stored with little else to show for them — commonly P132A, P132B, P1952, P1953, P2263 or P0046
- An engine management light, or a flashing glow-plug light on many diesels
- Flat, unresponsive acceleration low down, with the car feeling as though it never comes on boost
A fault code names the boost-control loop the ECU is unhappy with, not the component inside it that failed. That is why testing the unit settles what a code cannot. Each of these symptoms, and what it points at, is worked through in the full symptom guide.
What Fails Inside an Electronic Actuator
These units live bolted to an exhaust-side component, heat-cycled every journey and vibrated continuously. Four things account for most of what arrives on our bench. None of them applies to vacuum and pressure wastegate actuators — the sealed cans with no wiring, which fail mechanically rather than electronically and have their own page.
- The motor. A small DC motor doing a great many small movements per journey. Brush and winding wear shows first as a sluggish or incomplete sweep rather than a dead unit.
- The gear train. The motor drives the output through a reduction gear set. When the mechanism it is pushing becomes stiff with carbon, the gears take the strain and strip their teeth.
- The position sensor. Feedback is what makes the actuator closed-loop. The contactless inductive sensors used in these units drift or fail outright, and the ECU sees a commanded position that is never confirmed.
- The circuit board. Repeated heat cycling cracks solder joints and tracks; a perished seal or cover lets moisture in and corrodes what is behind it.
None of these parts is offered separately by the turbocharger manufacturers, which is why a main dealer quotes a complete turbocharger for a fault in a component the size of a fist.
What a Component-Level Rebuild Renews
Every actuator that comes to us goes through the same sequence, whatever the badge on the vehicle it came off.
- Tested as received. The unit is run before it is opened, so the fault is established as a measurement rather than inferred from the fault code that arrived with it.
- Stripped and inspected. Motor, gear train, position sensor, circuit board and seals are examined individually, and the wear pattern usually tells us whether the actuator failed on its own or was fighting a stiff mechanism.
- Wear parts renewed. Motor, drive gears, position sensor and seals are replaced rather than cleaned and refitted, and the board is reworked. Where a component has a known design weakness, an uprated equivalent goes in instead of the part that failed.
- Calibrated. Travel and feedback range are set to the specification the unit’s own reference demands, so it reports the same values to the ECU as it did when it left the factory.
- Bench tested. The rebuilt unit is driven through its full sweep and checked for correct feedback across the range before it is packed.
What comes back to you is your own actuator, rebuilt — which is the reason there is nothing to code, adapt or take to a dealer when it goes on.
An Actuator Fault Does Not Automatically Mean a New Turbocharger
The actuator unbolts from the turbocharger, with a link arm or circlip at the mechanism end. A mechanically sound turbocharger with a failed actuator does not need replacing, and on most cars the turbocharger can stay on the engine while the actuator goes to the bench — the Mercedes C-Class page sets out what that means for the rest of the job.
There is one important exception. If the vane mechanism inside the turbocharger has seized with carbon, the actuator was straining against it and a rebuilt unit put back on the same jammed mechanism will fail again. The Jeep Grand Cherokee page explains how to check the vanes move freely, and if the turbocharger itself is the problem, our turbocharger repair and rebuild service is where to start instead.
Sending Your Actuator In
- Remove the actuator. It unbolts from the turbocharger and disconnects at the link arm. If you are not doing that yourself, any competent garage can, and the turbocharger stays put.
- Record what it says. Photograph the references and the label, and note the vehicle, engine variant and any stored codes.
- Pack it properly. A rigid box with padding around the connector and the output arm; those are the parts that get broken in transit, not the casing.
- Post it to the workshop. Unit 102 Reaver House, 12 East Street, Epsom, Surrey, KT17 1HX, United Kingdom.
- Rebuild and return. Typically one to two working days on the bench from arrival, then your own unit comes back ready to refit.
Tell us the vehicle and the symptoms on the online repair form and post the unit in, or contact us with your fault codes and vehicle details first if you would rather have the references checked before anything is boxed up. Independent garages and workshops use the same route as private owners.
Cost, Turnaround and the Lifetime Warranty
Electronic turbo actuator repairs start from £100. What decides the final figure is which components need renewing, and that is settled on the bench rather than from a description of the symptom.
Turnaround is typically one to two working days from the unit arriving. There is no coding, no adaptation and no dealer visit on refit, because the actuator going back on the car is the one that came off it.
Every rebuild carries a lifetime warranty with no mileage cap. That covers our workmanship and the components we fitted; the full conditions are set out in our terms of service rather than buried in this page. Where the original design is the reason the unit failed, the rebuild uses an uprated component in that position, so the repair is not simply the same clock started again.
Turbo Actuator Repair FAQs
Shipping, payment and warranty questions are also covered on our FAQs page.
My car is not on your list. Can you still rebuild my actuator?
Almost certainly. The fourteen pages are the vehicles we are asked about most, not the limit of what we rebuild. Send us the references from the casing and we will confirm before you post anything.
Where do I find the reference number on my actuator?
On a Hella unit fitted to a Garrett turbocharger, the G-reference is on the side of the alloy base, with the longer 6NW number on the label. Photograph every marking you can see rather than transcribing one.
Do I need to send the whole turbocharger, or just the actuator?
The actuator on its own. It is a bolt-on unit and the turbocharger stays on the engine. If the checks point at the vane mechanism rather than the actuator, tell us and we will advise on the turbocharger separately.
Will the rebuilt actuator need coding or programming?
No. Your own unit is calibrated on our bench to the specification its reference demands, so it refits as a direct replacement with nothing to code and no dealer visit.
What does an actuator rebuild cost and how long does it take?
From £100, with the final figure decided by which components need renewing. Turnaround is typically one to two working days from the unit reaching the workshop, and every rebuild carries a lifetime warranty with no mileage cap.
I have a boost-control code. Is it definitely the actuator?
Not on the code alone. It tells you the ECU did not get the boost it asked for, which a seized vane mechanism, a wiring fault or the actuator itself can all produce. Testing the unit is what separates them.
Start Your Actuator Repair
Most actuator jobs are decided by two things: what the references on your unit say it is, and what the bench says has failed inside it. Neither depends on which car it came off, which is why a model missing from the list above is rarely the obstacle it looks like.
Turbo Repairs · Epsom workshop
Send your actuator in for rebuild
Give us the vehicle, the references on the casing and the symptoms on the repair form, post the unit to us, and it comes back rebuilt at component level and calibrated — your own actuator, ready to refit.
From £100 · One to two working days on the bench · No coding on refit · Lifetime, unlimited-mileage warranty
