Suzuki Common ABS Pump (ESP Fault) – Brake Pressure Sensor Switch Failure
Suzuki Brake Pressure Sensor Problems

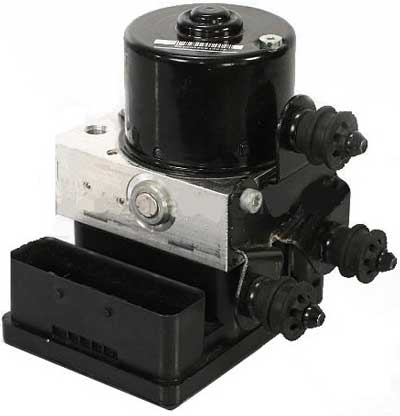

The MK60 ATE Teves ABS pump is fitted to a wide variety of vehicles from all makes of manufacture and includes the Suzuki group vehicles. This type of ABS pump has an internal brake pressure sensor manufactured inside the unit is commonly known for it’s pressure sensor fault and is very expensive to replace. Earlier ABS pumps never had this fault because the pressure sensor was never before fitted inside the ABS pump – but these new type of ABS units are failing all day long and it’s a major design fault with all internal pressure sensor units.
How To Detect The Suzuki Brake Pressure Sensor Fault
When the pressure sensor has failed on the Suzuki ABS system, the traction control light will be illuminated and sometimes the ABS light as well. The traction control (ESP) button may also be illuminated and pressing the button will have no affect.
Common DTC Fault Code Associated With This Fault
C1028 – Brake pressure Sensor Circuit defective. – Present.
Common Suzuki Vehicles Affected With The Pressure Sensor Faults
Below we have compiled a short list of vehicles we have found fitted with the MK60 ATE ABS pump from our own experiences of units being sent in to our workshops on a daily basis for rebuilds and exchange.
| Vehicle | Vehicle | Vehicle | Vehicle |
|---|---|---|---|
| Suzuki Grand Vitara | Suzuki Splash | Suzuki Swift | Suzuki Vitara |
Common Suzuki ABS Part Numbers Affected
Below are the most common part numbers coming in every day to our workshop. We receive 100’s of units from all makes of vehicles each week for repair and replacement so don’t worry if your part number is not listed.
| OEM | ATE |
|---|---|
| 06.2109-5200.3 | 06.2102-0885.4 |
| 000403-296D.1 |
If your Suzuki has the dreaded Brake Pressure Sensor fault then you probably already have had a scary quote from a dealer of £1200+. Even second hand used parts are not cheap and require additional coding / programming. Neither of these options are recommended because it doesn’t fix the root cause of the problem and you will be just waiting on the day for it to fail again.
My Brake Pressure Sensor Has Fail – How Can SINSPEED Help Me?
Instead of just replacing the unit with a like-for-like part or repairing the ABS with a standard like-for-like pressure sensor as most workshops are currently offering. Sinspeed will take your unit and modify it to ensure never again over heats and then replace the pressure sensor with an uprated component. The uprated pressure sensor is guaranteed to last the lifetime of the vehicle and all components used by Sinspeed during the remanufacturing process are brand new OEM quality parts to ensure that each & every rebuilt ABS pump meets and exceeds OE specifications.
All of our rebuilt ABS units come with a Lifetime warranty and will not require programming. Our ABS pumps are self calibrating – making them fully plug & play!
Why Modify The Unit? – Why Not Just Replace The Damaged Part?
All cars prior to the MK60 ATE ABS unit had the pressure sensor fitted externally and never failed.
If we fit a standard part inside the pump it will still have the design fault it was manufactured with and although we can put a warranty on the unit and replace the sensor each time it fails (because they are cheap as chips to buy) you will still be left inconvenienced by having to remove the unit each time it fails and pay for the labour each time. We rework the original design and ensure that our modified units are rebuilt to last.
SAFETY WARNING!!
There have been rumours of people and/or companies trying to repair these units and in some cases imitate our work. Please understand that although the ESP system is not absolutely crucial, modifying the ABS controller / pump in any way (without superior extensive knowledge) in the technology of advanced braking systems and electronic control modules, you will be risking the life of others. Please do not attempt to repair these units yourself and please do not offer such services to trade or the general public. We have been in business since 1972 as a group company and all our parts, services are fully tested before leaving the workshop. All units are thoroughly tested on specific specialist equipment to ensure maximum quality. Our ESP Fault Modifications come fully approved and as far as we’re aware, there is no other company out there that can successfully repair these units and completely remove the defective state.
If you have a vehicle with the Brake Pressure Sensor ESP Fault then give us a call on 0203 815 9441.
Oh!! bTW the part number for my esp/abs unit is
06.2109-5330.3
06.2169-3204.1
56110-79KBO 79KB2
made in mexico
the above numbers are on the plastic box.
theses numbers are on the round part
77KO b
0632102-1031.4
vin number of vehicle is
JSAJTDB4V00202189
THANKS AGAIN
STEVE
Hi, I’ve a Grand Vitara 2006 this is without the ESP but with ABS. i’m experiencing peddle going to the floor. and sudden stops will takes time to go for a complete stop. but no codes were Reported (C1028). is this something to do with the ABS Pump Pressure sensor or could it be Air Trapped inside the aBS pump solenoids?
– Regards,
Asela
hi there I have a customer with a Suzuki swift with a braking problem where the brake pedal can go right to the floor, its intermittent and ive put it down to the aBS . after a bit of research it seems to be a common fault with the pump. would refurbishing the pump cure this breaking problem.
73K1
BE 2WD,
These are the details on the pump, thanks, james.
In Australia How do I test brake pressure sensor as I keep Getting
esp service hill hold disable .
I had this fault once in my codes and maf sensor replaced but keep getting this code.
Even had service 4wd low reste cimputer now gone.
I have a 2009 Grand Vitara SZ5 with this problem. The vehicle was involved in a front end collision last year and has been repaired however I am getting intermittent flashing ESP and ABS Warning lights . I live near Coningsby Lincolnshire.
hi I have the abs problem on our 2016 Suzuki Vitarra. Could have details about how to get it fixed please.
Hi ive got the abs light on a suzuki swift 1.6 sport 2007 is this the common fault ?
cheers
jay
replaced nearside sensor on 2006 swift and new half shaft, abs light still on . Brake pedal can be pushed to floor . all system had new fluid and bled . any sugestions? no other leaks. Regards mick Nethercott
I have an ABS pump on my Suzuki Grand Vitara 2007 with ESP and the ESP light is on my dashboard, I have an error C1028 an my pump code is 06210909543.Can you repair it an what We’ll be the cost. Thanks.
Hi could you send me details and price for the repair of an aBS pump for a 2007 Suzuki swift sport. Kind Regards.
Hello i have abs fault on swift 2012 1.3 Diesel code is c1026
Can you repair it please
Or replacement
Thanks
Hi I have the abs problem on my suzuki swift sport can i have details off you about getting it fixed? Thanks
Hi
I also have problem with Pressure sensor on suzuki splash 09 plate
Can you help me with a price and how long it normally take to get pump back?
Thank you
Abs pump suzuki swift needs replacing leaking brake fluid
hi.do you have abs pump for suzuki swift sport 2008 year
Hi
I have a problem with my traction light staying on. I have a suzuki swift 66 plate
And i read your thoughts on a pressure sens in the ABS pump needing to be modified can you give me some advice
Many Thanks
Peter
hi, I have a 2005 suzuki swift with an abs issue. Parte number 062102-03854/62J0. there is no oil leak, but the brakes/abs do not work when heavy braking.
Can you help? I live in portugal
Thanks
Hi can you give me a price for fixing An abs pump from a grand vitara ddis 2008 . Many thanks
bEILEVE WE NEED THIS UNIT REPLACED, OR FIXED, CAN YOU GIVE US QUOATION, AND DO WE REMOVE AND SEND YOU ITEM? THANK YOU.
rOSS. IT’S ON A sUZUKI ALTO 2010
Hi
I also have problem with Pressure sonsor on suzuki SX4 – production date 2007
Can you help me?
Thank you
Hi
Pls Can you advise or if yiu can replace or repair partnumber
52 ko de 06.2102-0983.4
It’s from a suzuki splash 2008 1.3 model.
Thanks
Shiraz
Abs gone on my Suzuki swift.
Got a replacement part from breaker before being told about Decoding .
Can you help
Hi. I own a 2008 model suzuki splash 1.2 petrol automatic with esp light On. How much is the upgrade please? Thanks.
Hi i have a 2013 Suzuki swift sport 3dr with the esp light on and yes have had a scary quote. What would be the cost to rebuild the unit?
I have a 2008 Grand vitara the abs and esp lights come on intermittently and the dealer says abs control pump needs replacing. I live in south africa. would you be able to repair if sent to you ?
I’m Live in Australia and have a grand vitara 2008 with esp fault. I have been quoted a price above the value of the car to replace the abs esp unit. Can you help?
Hi. I own a 2008 model suzuki splash 1.2 petrol automatic with esp light on in dash and c1028 code on Diagnostic. What am I looking at for the upgrade Unit? Thanks.
I HAVE THIS PROOULDBLEM WITH MY 2002 SUZUKI XL7 COULD YOU TELL ME A PRICE
Hi!
I have this problem with suzuki grand Vitara 2007. Can you provide me with the prices? Thanks
Quote Suzuki Grand Vitara 2006
Its got ESP On can’t get to go off
Plugged my snap on ethos to my swift same fault code as above presume I need to repair by the sounds of above could you quote me for repair please
Hi
Please can you help. I have a Suzuki SX4 08 that has the ABS error light on. Is this something you can fix and if you can please can you provide me with prices.
Thank you
Steve
Hi
I have a suzuki sx4 08 with the ABS error light on. Please Can you provide prices to rectifiy the problem.
Steve
my 2007 suzuki grand vitra codes c1018 & c1028 come up on my computer. had it check when esp lite stayed on.
HI, My Suzuki Splash [’08] is displaying ESP light constantly on. Please supply price to repair pump 52ko and information on options for removal and re-fitting.
John
I have an alto 2010 with Abs and esp lights on . It has the pressure sensor fault . How much to repair the Abs/esp unit and is it my one you recondition so i dont have to programme it ?
I have been advised by my garage that the abs pump on my suzuki swift 2006 reqs replacing .
Can you give me a price to fix my existing unit please
2008 grand vitara diesel has EPS, N, L4 warning lights coming on all together randomly
My suzuki splash is Showing Esp Light on, I’ve taken It to a suzuki dealer Garage diagnosis C1028 fault quoted £1500 plus. Is it Safe to drive With this Esp light Showing?. Can you please give me a price if you repair this fault
Hello can I Also have PricesPrice for repairing Brak Pressure sensor switch in swift Sport 2009?
Hi 2009 Suzuki Alto 1.0 litre. abs & esp lights On showing no fault code. Do you think it is the ABS/ESP pump part no. 06.2102-1024.4
I have a Suzuki Grand Vitara 2009 3 door, 2.4 Ltr petrol. My ABS system has failed, can you tell me if this a common problem & how can I fix it?
Thanks
Frank
Hi,
My Suzuki Swift HT51s started jerking and the following error codes were found after checks: c1032 and c1036 to do with the wheel speed sensor for the rear tyres. further investigations now reveal the speed sensors are fine and its the ECU/pump that is faulty.
Please quote me for works on the unit and approximately how long will it take to get the unit back?
Thanks
Hello. My Grand vitara 2008 have an error C1028. I’m from Belarus. Can you send me you price?
thanks
have a 2007 Suzuki swift with a high pressure sensor fault how much to recondition the unit please
Hello, I Will like información to Repairmy abs pump for my 2009 Grand Vitara. I live in Mayaguez, puerto Rico Thanks
I have a 2010 Suzuki grand vitara in which my abs, esp, and brake light are on in the instrument cluster. The code is c1044 in which appears to be related high pressure senor. How much would it cost to fix my abs pump? and how long will It take?
Thank you
Hi, I have a 2010 Suzuki Grand Vitara. Abs Failure can you qoute me a price. With return shipping to Arecibo, Puerto Rico 00612 USA. Thanks.
Hi, I have a 2009 Suzuki Grand Vitara. Abs Failure can you qoute me a price. With return shipping to Manati, Puerto Rico 00674 USA. Thanks.
07 SUZUKI ESCUDO Brake Pressure Sensor Switch Failure
PARTS NUMBER 06-2109-5102.3
HOW MUCH REPAIR AND FRIGHT FROM NZ ?
THANKS
Hi guys, I live in Australia, my 2010 Grand vitara which Has ABS light and ESP service in display, codes state c1061, i have replaced the battery and Cleared codes, but c1061 returns, couldnthis be a faulty ABS pump
Thanks
Hi, I have a 2007 Grand Vitara 2,0 with fault codes c1037 and c1028, can you send me a qoutation and an explanation of your workway on this problem? Thanks in advance. Best regards, Jorn. Located in the netherlands.
Hi, i have a 2006 suzuki swift sport with the abs light illuminated on the dash,how much does it cost to get fixed?
Hi. My 2007 Suzuki Grand Vitara Xsport was just in the shop for the ESP light on, the mechanic said it was the sensor inside the ABS pump – the part is listed at $2377.00. I am in the United States – are you able to provide this service to those outside of the UK and what would it cost.
Hiya I have this fault on my suzuki Swift sport 2007 the fault codes are as follows C1028 – C1018 can you please quote me for them sperately and combined thanks in advance
I have 2007 v6 4×4 grand vitara waht is the prices of yor abs module.
Thanks
I have error code C1044 – Cut-off solenoid No. 2 malfunction
Can you please send me piricing information, as well as shipping details (I am based out of Panama)
Thank you,
Rodrigo
Hi could I have a price for the c1028 fault on my 2007 swift sport, thanks
I have a suzuki swift sport 08 vvt
The esp light has come on and was just wondering how much it costs for the abs unit to be replaced for sinspeed
Hi, please can you tell me if this ESP/ABS problem affects the Suzuki 1.0 splash,every thing I’ve read seems to point only to the 1.2 Suzuki splash, Your reply most appreciated, Thanks Steve
I have proplem with abs suzuki swift 1.3cc 2008.
How mach money need for feexed and how to send you (adress)
i live cardiff area. some idea of price
2009 suzukisx4 eps an abs lights come the dash wher e can i go for repair
while diving my 2008 Suzuki ESCUDO, ESP, ABS and Park Brake lights on dash board illuminated. Can you offer an estimated cost of replacement parts.
I have an abs unit that has a malfunction in the pump (leaking) according to the mechanic. The specs are ATE 06. 2109-0568. 3 and 06. 2102 – 0385.4 the car is a Suzuki swift 2006 model 1300cc. Could you tell me the pricing of P&P from Greece Corfu and rebuild/repair.
Thank you
Possible my Suzuki swift has this problem my abs light came off went off now my car won’t start could u tell me if you think it’s the sensor pad and how much would cost.
I Have 2007 Gv with sama problem. Can you send price and information To me?
Hi Jason,
Following all the inquiries you’ve had about the ESP/ABS warning light coming on I have a 2010 Suzuki Alto with an intermittent fault. Could you advise me of the pricing for a replacement part. Thanks
kind regards
Mike Spencer-Hicken
I too have an issue with the ESP/ABS warning light coming on I have a 2010 Suzuki Alto Had Suzuki run a diagnostic on it which they reported had multiple codes stored relating to ABS module, leading to an internal fault in the ABS module,. Could you advise me of the pricing for a replacement part. I am located in Melbourne, Australia, Thanks
& regards Brian
My Suzuki Grand Vitara 2007’s ESP sign illuminated. Could you provide your quotation to fix the ESP fault. Thanks
Please send me price info to rebuild ABS pump on 2009 Suzuki Splash 1.2 petrol. Thanks
Have a faulty module on my 2008 1.9l diesel vitara. Part numbers on pump module are 06.2109-5329.3 06.2619-3142.1 06.2102-1029.4 and is made in Japan. I am in Australia.
Hi, i have a Suzuki Swift 2011 1.3 Diesel.
I have the same error although my engine management light came on at the same time.
Please send me some price info.
Rgrds
Hi, I have a 2007 swift with the above problem. Can you please send me some price information.
Br. Mathias
My esp light has come on and the warranty won’t cover the cost, suzuki quoted £1800 and Halfords £2200……can you help?
Good day to you, I have “Service ESP System” warning that appeared on my 2011 Suzuki Grand Vitara Prestige 4X4. It was diagnosed as ABS pump / module failure – Code DTC C1601. The part number on the unit is:
06 2109 – 6000.3 & 06 2619 – 37201.
What would you charge to repair this unit and also do I only have to remove the module? One more issue. I am based in Melbourne, Australia.
Hi I have a Suzuki splash 2004 model with ESP light on I think it’s the ABS pump that’s faulty how much would it cost to have it repaired.
Marj.
Hi, my 2007 Suzuki swift sport has the ESP, ABS and traction lights on. Am guessing it’s the sensor. Could I get a price for the repair?
Cheers
Hi,
I have a Vauxhall Astra H 2007 with fault code C0131-00 & C0131-5A part number 13 246 535
can you please come back to me with repair costs.
Regards Rob
Hi, I have a Suzuki Swift 2009 (59) SZL 1300cc which has been diagnosed with the ABS Pump problem. Can you give me a price for this to be fixed, what is the normal turnaround for this process and is the unit straight forward to refit.
Many Thanks,
Robert.
hi i have a suzuki splash 1.2 58 plate with error code C1028 AND C1078
can you give me a price to repair it please
also is it realy just a matter of taking the old one off and putting the unit back on after you repair it and just bleeding the brakes in the normal way
And do all the dash lights work as they should after the mod ?
thanks nige.
Hi I have a 2007 Suzuki swift with the above fault. Can you send me some price information.
How much cost me an ABS Pump (ESP Fault) for a Gran Vitara 2010, 4cilinder
