Jeep Grand Cherokee 3.0 CRD Electronic Turbo Actuator Repairs — WK, 2005–2011

This page is for the owner of a WK Grand Cherokee 3.0 CRD that has gone flat, dropped into limp mode, or stored a boost fault a garage has read simply as “the turbo”. Two components sit behind that fault and on this engine they are mechanically linked: the electronic unit bolted to the outside of the turbocharger, and the vane mechanism inside the turbine housing that it exists to move. Which of them is worn decides the job — and you can find out before spending anything.

Which Grand Cherokee Is This? The WK 3.0 CRD, and the Car That Came After

The car this fault belongs to is the WK Grand Cherokee sold with the 3.0 CRD V6 from 2005 to 2011. Its turbocharger is a Garrett variable-nozzle unit, and the actuator bolted to it is a Hella electronic type — driven by a small motor, positioned by the engine control unit, and reporting back where it has actually reached.

The V6 is an OM642-family engine. That is why the same actuator appears in supplier catalogues under Mercedes, Dodge Sprinter and Jeep headings at once, and why some listings carry a Mercedes chassis code next to the word Jeep. Such a listing is not necessarily the wrong part — the engine really is shared. It does mean the model name on it carries no information, while the reference stamped on your own casing carries all of it. The closest relation on our own site is the Jeep Commander 3.0 CRD, which uses the same engine and the same actuator families.

Set one boundary before you start reading part numbers. Catalogues record a different actuator — Hella 6NW009543 on base number 763797 — against a 3.0 CRD Grand Cherokee built between 2013 and 2016. If yours is the later car, none of the WK references below are yours.

What you are actually looking at

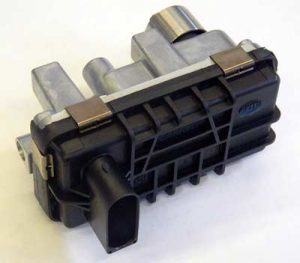

Jeep used vacuum-operated turbocharger actuators as well as electronic ones. An electronic actuator is a rectangular unit with a moulded housing, an electrical connector and a short arm linked to the turbocharger; a vacuum actuator is a shallow metal can with a rubber pipe to it and no wiring at all. If there is no plug on yours, nothing here about motors and position sensors describes your car.

Note also that many listings call this part a “turbo wastegate actuator”. On a variable-nozzle turbocharger it is not operating a wastegate — it is swivelling a ring of vanes inside the turbine housing. That is not pedantry. It is the reason the fault behaves as it does, and the reason the actuator so often takes the blame for a problem that began elsewhere.

How a 3.0 CRD Actuator Fails — and Why It Is Usually the Second Thing to Break

Inside the turbine housing is a ring of small vanes around the turbine wheel. They swivel together to change the area the exhaust gas is forced through: closed down at low engine speed so the gas is accelerated hard onto the wheel and boost arrives early, opened up as flow rises so boost is held to target rather than running away. The actuator’s only job is to put that ring exactly where the control unit asks and hold it there.

Diesel exhaust is not clean. Soot and oil mist settle on the vanes, on the ring they pivot in and on the pins they turn on, and bake into a hard deposit. Nothing dramatic happens on any one journey. Over years, the effort needed to move the mechanism climbs.

The actuator is never told about that. It is given a position and drives until its own feedback says it has arrived, so every extra bit of drag in the nozzle ring is carried by the gear train and the motor — on every boost demand, thousands of times a journey. Eventually one of three things gives way: teeth strip out of the reduction gears and the motor spins against nothing; the motor cooks itself against a load that will not yield; or the vanes seize hard enough that the arm cannot move at all.

That order is why “the actuator has failed” is only half the story on this engine. It failed doing its job against a mechanism that had stopped doing its. And the practical consequence is the most useful thing on this page: a rebuilt actuator returned to a nozzle ring that is still stiff is loaded on day one exactly as the old one was on the day it died. It will be a better unit — new motor, new gears, fresh calibration — but it will be pulling against the same resistance.

That does not make carbon the only culprit. These units are bolted to an exhaust-side component and cycle between engine-bay heat and cold mornings for their whole life, and the electronics fail on their own account too — worn sensor tracks, fractured joints, a motor simply worn out. Both routes are common, which is exactly why we test the unit as received, before it is opened. What we report back is what genuinely failed, not what was assumed to have failed.

The Symptoms, and What Each One Narrows Down

Every repair listing carries the same symptom list. What is rarely explained is that each one rules something in or out, which is worth knowing before anybody buys a part.

Before anything is disturbed, note two things down — whether the fault clears on an ignition cycle, and how long the engine runs before it comes back. That describes the condition of the unit better than the code number does, and we read it against what the bench test finds.

The Fault Codes a Grand Cherokee Stores — and What They Do Not Say

Four codes account for the overwhelming majority of these cases. Read carefully, they describe a circuit and an outcome. Not one names a component.

Two cautions when you start reading around. Repair listings for this actuator often print one fault-code block shared across every vehicle the seller covers, so you will find Mercedes-specific and Ford-specific codes sitting on a page about a Jeep; those are not codes your Grand Cherokee will store. And no code on this list separates the actuator from the vane mechanism it drives — the control unit commands a position, measures a pressure, and records the disagreement. Separating the two is a mechanical job.

Prove the Vanes Are Free Before You Buy Anything

This is the sequence that separates the candidates, in the order that costs least. None of it needs specialist equipment, and the last step decides the job.

1. Start with the electrical side. Inspect the connector for corrosion, a perished seal or a cracked latch, confirm it is properly home, and check supply and earth at the plug along with the fuse feeding the circuit — use the fuse chart for your own vehicle rather than a number copied off a listing. A P1033 in particular describes a short, and a short is as likely to be in the loom as inside the unit.
2. Watch the arm with the engine running. Have it observed while the engine is revved. On a healthy system it moves as the vanes are commanded. No movement narrows the fault to two candidates without separating them.
3. Look for a boost leak while you are there. A split intake pipe, a slipped clamp or a failed joint all under-deliver boost and store the same underboost code. They cost nothing to find beyond looking properly, and they are the cheapest thing this can turn out to be.
4. Separate the actuator from the turbocharger by hand. With the actuator unbolted, sweep its arm through the full range of travel by hand. Free movement end to end, with no catching, means the nozzle ring is moving and the actuator is your suspect. Binding, sticking part way, or no movement at all means the vane mechanism has stiffened or seized — and no work on the actuator will cure the car.

Do that fourth check properly rather than quickly. A ring that moves but feels notchy is the awkward middle case: the actuator can still drive it, so the car may well run, but the drag that killed the first unit is still there. Tell us if that is what you find — it changes what we say about the repair, and it is better said before the unit goes in the post than after it comes back.

Two notes specific to this Jeep. The V6 carries its turbocharger in the vee between the cylinder banks, so the intake assembly above the engine comes off before the actuator can be reached; that is not a kerbside job, but it is routine for a competent independent garage, and the turbocharger itself stays on the engine throughout. And do not drive it with the actuator unplugged or removed to see what happens — the vanes are then left wherever they last stopped, with nothing controlling them.

Identifying Your Actuator: Hella Numbers, Base Numbers and G-Codes

Wipe the casing, take a torch to it, and you will normally find two or three separate identifiers. Knowing what each is for prevents most of the wasted purchases owners make on this fault.

• The Hella part number, in the form 6NW nnn nnn. It identifies the actuator family, and a family can cover a great many vehicles.
• The base number — a shorter number such as 781751, 730314, 712120 or 763797, recorded alongside the Hella reference in supplier cross-references.
• The G-code — G-001, G-88, G-219, G-276, G-277 and others. This is what rebuilders and suppliers actually catalogue units by; specialist suppliers tell you outright to search on the G-number or the turbocharger part number rather than the vehicle, which shows how little the model name is worth here.

Read that as what the catalogues record, not as a promise about your vehicle. Two further G-codes, G-276 and G-009, appear in published reference pools for the WK 3.0 without being tied to a single Hella number, and one of them may well be what is on your casing.

Why one G-code turns up against two different actuators

Look closely at the table and G-219 is recorded against both 6NW008412 and 6NW009420, by different suppliers. That is not a misprint in one of them. These references identify a unit for a particular turbocharger build, and rebuilders group them differently — which is precisely why a part that bolts on is not necessarily the right part.

So read every marking you can find, not the first one that matches something online. If the casing is heat-aged and only one identifier is still legible, photograph the label and send it with your registration rather than ordering against a partial match.

What Wears, What Breaks, and What a Rebuild Renews

The unit is a small direct-current motor driving a reduction gear train, a position sensor reporting where the output shaft has reached, and a circuit board doing the commanding and reporting — all living at exhaust-side temperatures. Four things fail, and which one has failed explains a great deal about how the car behaves.

The gear train is the headline failure on this application. Original grease dries and carbonises, fine deposits work in, and the gears spend years transmitting more torque than they were designed for because the nozzle ring has stiffened. Teeth strip. When they do, the motor is often perfectly healthy and the arm completely dead.

The motor. Brushes shorten and commutation degrades, and a motor working against a stiff mechanism gets there sooner. It becomes marginal long before it becomes dead — which is why the fault first shows when everything is thoroughly hot and has gone by morning.

The position sensor. Its track wears a band at the part of the travel the engine uses most, so the unit reports a position it is not in. The most misleading of the four, because the actuator is still moving and everything looks alive.

The circuit board. Joints and printed tracks that have cycled between engine-bay heat and cold mornings develop hairline fractures that open under vibration and close as everything expands. That is the classic intermittent that clears on a restart.

Cleaning the unit out addresses none of it. A clean removes accumulated drag and leaves every bit of the wear in place, which is why a cleaned actuator characteristically comes back. It is also why a second-hand unit is a lottery — it has covered an unknown distance down the same road as yours, with all four mechanisms running the whole way.

So we do not clean and reassemble. The worn parts are renewed — motor, gear train, position sensor and seals — the board is reworked rather than wiped over, and components with a known weakness in the original design are uprated rather than refitted, so the unit going back onto your turbocharger meets or exceeds original specification. It is then calibrated across its full sweep and proven on the bench before it is boxed.

Rebuild, Reconditioned Exchange, Used Unit, or a Complete Turbocharger?

The franchised route for this fault is normally a complete turbocharger with an actuator attached, plus the labour to remove and refit it — which on this V6 means taking out a turbocharger that is frequently perfectly serviceable, for the sake of a sub-assembly bolted to its outside. There are four routes, and they are not equivalent.

A used actuator is the weakest. It has to be matched on its G-code rather than the Hella number alone, it arrives carrying an unknown history of exactly the wear described above, and used units generally need coding to the vehicle before they will work. On an engine shared across three manufacturers, a listing that says only “fits Jeep Grand Cherokee” is not telling you what you need to know.

A reconditioned exchange unit is quicker, because a rebuilt actuator is already on a shelf. The trade-off is that it hands the identification problem back to you at the moment you had solved it: the one unit you know beyond doubt suits your turbocharger is the one that came off it, and under an exchange arrangement that unit goes the other way.

Rebuilding the actuator you already own removes the question entirely, and it is the least invasive thing that can be done to the vehicle — the turbocharger stays on the engine. Reconditioned units and parts sit in our shop if an exchange genuinely suits you better, but for most owners of this car the sensible route is to send in the unit whose fitment is already proven.

A rebuilt turbocharger is the honest answer when the by-hand sweep finds a seized nozzle ring, or when the core has real shaft play. That is a different and larger job, and we say so rather than returning a rebuilt actuator to a fault it cannot cure. Turbocharger rebuilds sit under turbo repairs; the same variable-nozzle arrangement on a different Garrett unit is set out on our Garrett GT2052V page — another turbocharger entirely, but the identical principle of operation.

Our Jeep Grand Cherokee Electronic Turbo Actuator Rebuild

It is a mail-in service, carried out in our own workshop at Unit 102 Reaver House, 12 East Street, Epsom, Surrey, KT17 1HX, United Kingdom, by turbo specialists and electronic engineers who work on these units daily. The vehicle stays where it is and no part of the job needs a dealer visit; more about the workshop is on our about page.

1. Tell us what the car is and what it did. Registration, the codes stored, whether the fault clears and how long it takes to return, what the arm felt like when you swept it by hand, and every reference legible on the housing.
2. Take the actuator off and post it in. It unbolts from the turbocharger, and the turbocharger stays on the vehicle. Pack it in bubble wrap or foam inside a rigid box — paper and cloth protect neither a moulded housing nor a connector.
3. We identify it and test it as received. References are checked against the engine it came off, then the unit is tested before it is opened, so what we report is what genuinely failed.
4. We rebuild it at component level. Motor and brushes, reduction gears, position sensor and seals renewed as required, the board reworked, and components with a known design weakness uprated rather than refitted.
5. We calibrate it, prove it and send it back. The unit is cycled through its full travel and checked against live boost targets before sign-off, then returned ready to bolt straight on — no coding, no programming, nothing to set up on the car.

Rebuilds start from £100, with the exact figure confirmed once your unit has been identified and bench-tested, so it is known before any work goes ahead. Turnaround is typically one to two working days from the unit reaching the workshop, plus postage each way, and every rebuild carries a lifetime, unlimited-mileage warranty — no mileage cap, no expiry date. Units are accepted from anywhere in the UK and internationally; if you are sending from overseas, get in touch before posting so arrangements can be confirmed. The full range we rebuild sits on our electronic turbo actuator repair service.

Jeep Grand Cherokee Turbo Actuator Repair FAQ

Final Thoughts

The Grand Cherokee 3.0 CRD does not really have an actuator problem. It has a vane problem that presents as an actuator problem, and the difference decides whether the repair holds. An owner who sees that asks a better question than “which actuator do I need” — they ask whether the mechanism the actuator drives is still free, and they find out with a torch, a spanner and ten unhurried minutes.

Answer that, read every reference on the casing rather than the first one that matches something online, and you will know which of two very different jobs you are facing before you have spent anything. Both are jobs we do. Only one of them is a small unit in a padded box.
