Which Ford Engine Do You Have?

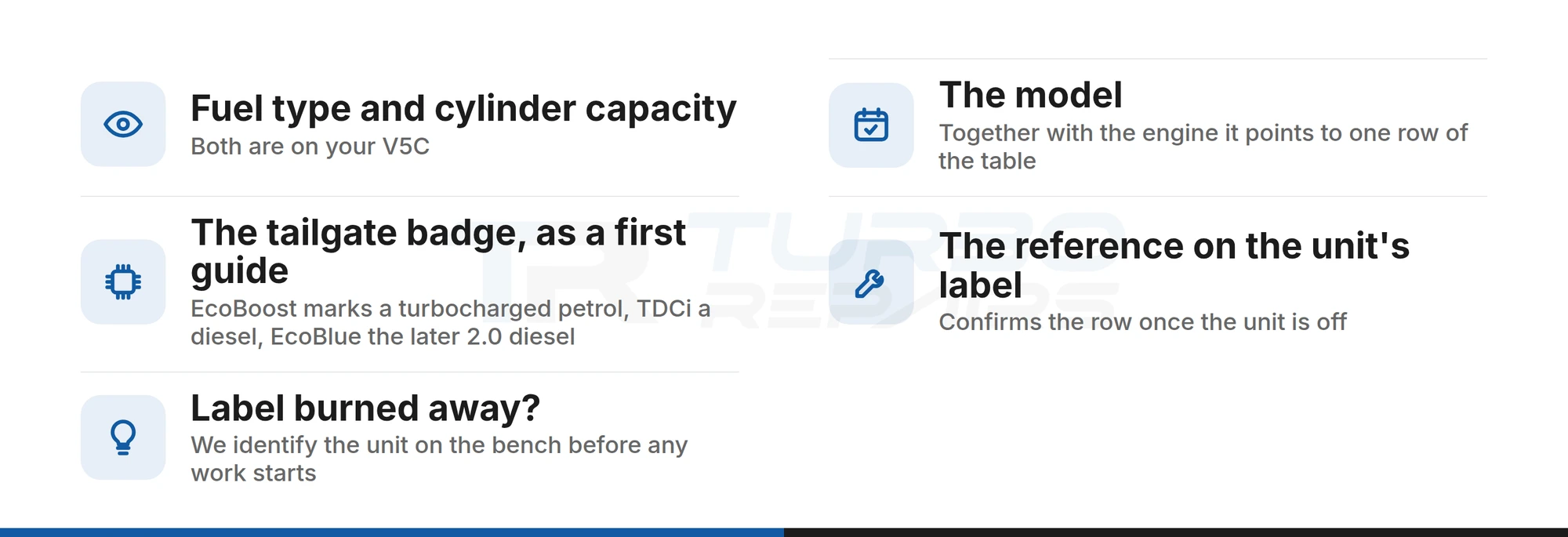

Start with the paperwork rather than the bonnet. Your V5C gives the fuel type and the cylinder capacity, and together with the model they point to one row of the table below. The tailgate badge is a useful first guide: on these Fords, EcoBoost marks a turbocharged petrol, TDCi a diesel and EcoBlue the later 2.0 diesel.

Once the unit is off, the reference on its label confirms the row. If the label has burned away, we identify the unit on the bench before any work starts.

Each row is drawn from our vehicle listings and the trade catalogues behind the page it links to. Some Ford engines have no page of their own, among them the 1.4 and 1.5 TDCi and the EcoBoost petrols larger than 1.0. Send the label reference and your registration through the Repair Form, and we tell you what the unit is and whether it can be rebuilt before you post it.

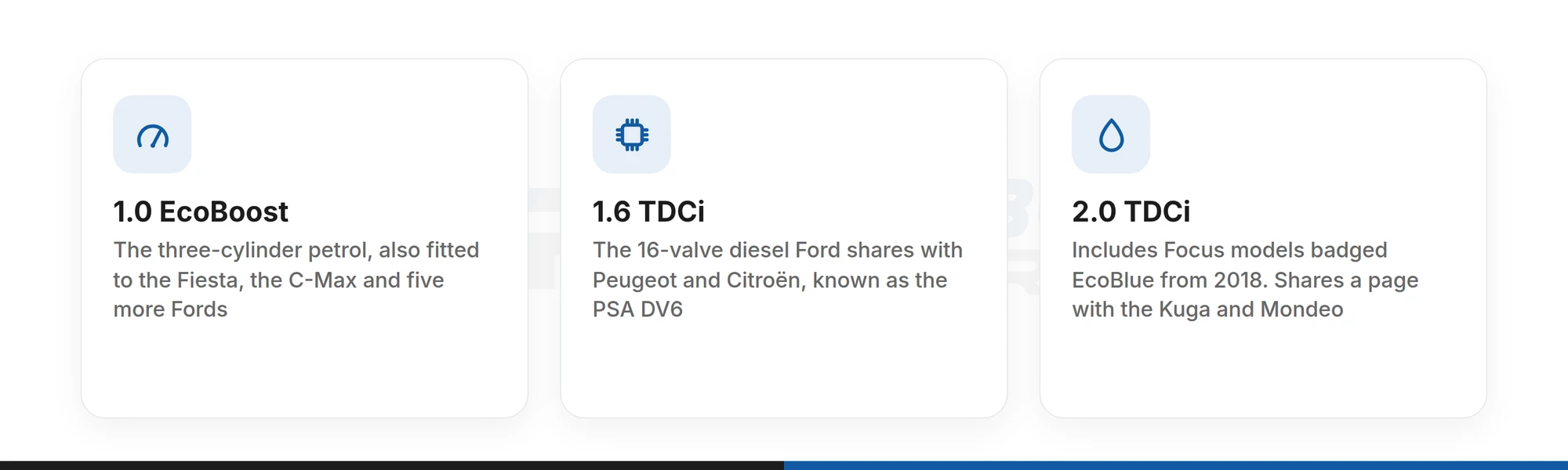

The Ford Focus: Three Engines, Three Turbos

A search for a Focus turbo mixes engines that have nothing in common under the bonnet. Three of them have pages of their own, and each carries a different turbocharger:

• 1.0 EcoBoost. The three-cylinder petrol, also fitted to the Fiesta, the C-Max and five more Fords. It is covered on our Ford 1.0 EcoBoost turbo repair page, with the Focus 1.0 EcoBoost rebuild listing alongside.
• 1.6 TDCi. The 16-valve diesel Ford shares with Peugeot and Citroën, known as the PSA DV6. Our Focus 1.6 TDCi turbo page is written for it, and the Focus 1.6 TDCi rebuild listing carries its references.
• 2.0 TDCi. Including the Focus models badged EcoBlue from 2018. It shares our Ford 2.0 TDCi turbo page with the Kuga, Mondeo and the rest of the family, and has its own Focus 2.0 TDCi rebuild listing.

The fuel separates the petrol from the two diesels, and the capacity separates the diesels from each other. The Focus was also listed with engines we have no page for, including the 1.5 and 1.8 TDCi and the 1.5 EcoBoost, and the Repair Form is the route for those.

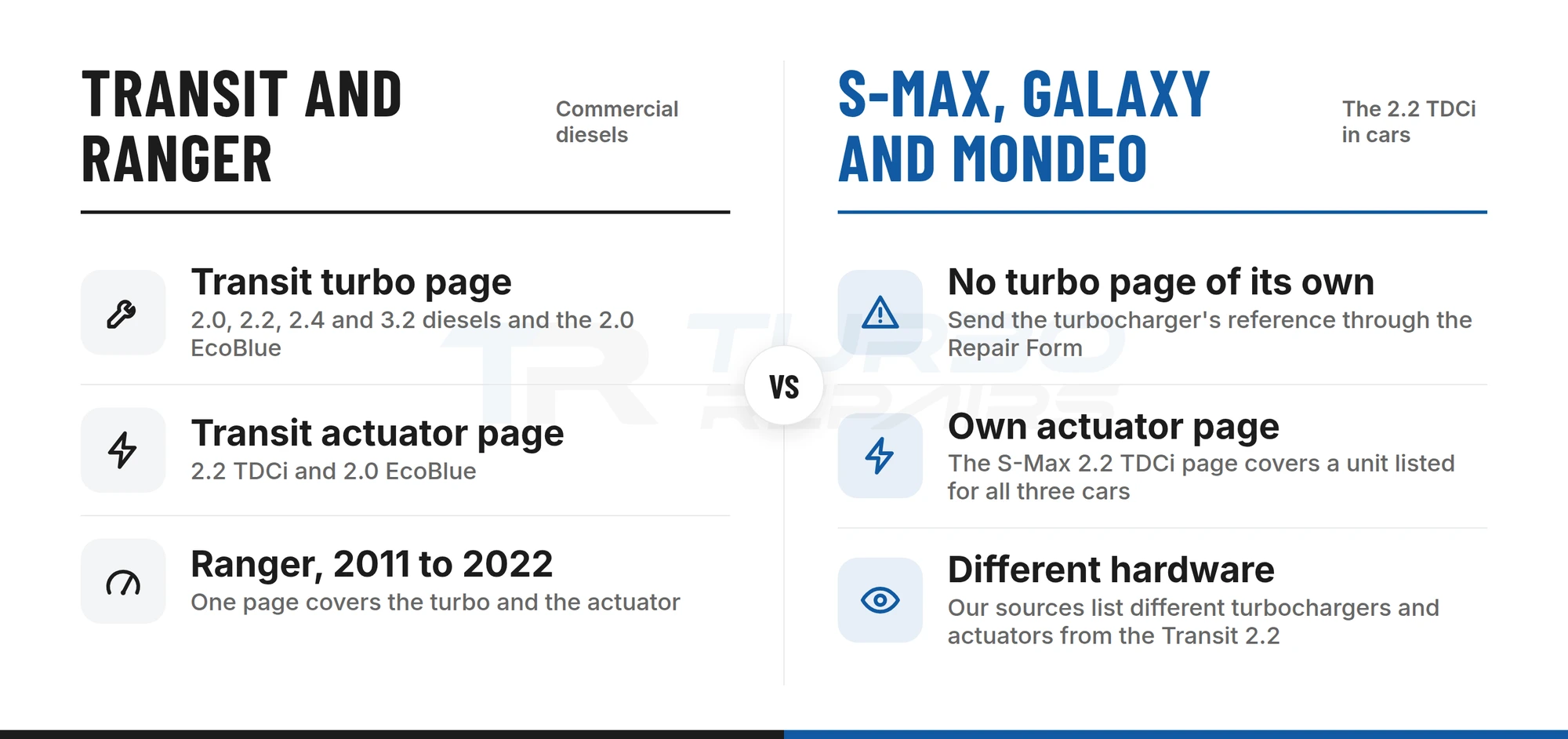

Transit and Ranger: The Van and Pickup Diesels

Ford’s commercial diesels have pages of their own, even where an engine name matches a car’s. The 2.2 TDCi is the clearest case: our sources list the Transit’s 2.2 with different turbochargers and different actuators from the 2.2 in the S-Max, Galaxy and Mondeo.

• Transit and Transit Custom turbochargers on the 2.0, 2.2, 2.4 and 3.2 diesels and the 2.0 EcoBlue are on our Ford Transit turbo repair page.
• Transit actuators on the 2.2 TDCi, the Custom and Tourneo included, and on the 2.0 EcoBlue are on our Ford Transit turbo actuator repair page. None of our sources lists an electronic actuator reference for the 2.4 or the early 2.0, so on those vans the turbo page comes first.
• The Ranger, 2011 to 2022, on the 2.2 TDCi, the 3.2 five-cylinder and the 2.0 EcoBlue in single-turbo and bi-turbo form, has one Ford Ranger turbo and actuator page for both parts. The actuator from a Transit 3.2 is covered there too. The 3.0 V6 Ranger from 2022 is not.

The Transit Connect and Transit Courier run smaller diesels that Ford also fits to its cars, and none of the Transit references applies to them. Send their label reference through the Repair Form.

Kuga, Mondeo, S-Max and Galaxy: The 2.0 and 2.2 TDCi

Our Ford 2.0 TDCi turbo page covers the four-cylinder 2.0 diesel in the Kuga, Focus, C-Max, Grand C-Max, S-Max, Galaxy, Mondeo and Edge, plus the 2015 Tourneo, and keeps the EcoBlue-badged cars from 2018 on the same page. Each model’s rebuild listing is linked from there.

On these cars, check the actuator before paying for an actuator repair. Suppliers catalogue a vacuum-operated actuator for the earlier 2.0 TDCi turbochargers, and our Ford Mondeo TDCi actuator page shows how to tell one from an electronic unit.

The 2.2 TDCi in the S-Max, Galaxy and Mondeo has no turbo page of its own, so send its turbocharger’s reference through the Repair Form. Its electronic actuator does have one: our Ford S-Max 2.2 TDCi actuator page, which covers a unit listed for all three cars. A Mondeo can also carry the 1.0 EcoBoost or the 1.8 TDCi, and the table above routes both.

Electronic Turbo Actuators on Ford Diesels

On a variable-geometry turbocharger, an actuator bolted to the outside sets the vanes inside. Where that actuator is electronic, with a motor, a gear train and a position sensor in one housing, it comes off on its own and we rebuild it separately, from £100 + VAT and typically in one to two working days. It goes back on without programming.

• Transit 2.2 TDCi and 2.0 EcoBlue: the Transit actuator page.
• Ranger: the electronic actuator on the later 3.2 turbocharger, covered alongside the turbo on the Ranger page.
• Mondeo 1.8, 2.0 and 2.2 TDCi: the Mondeo actuator page, which also covers the vacuum can some Mondeos carry instead.
• S-Max, Galaxy and Mondeo 2.2 TDCi: the S-Max actuator page.

The 1.6 TDCi has no actuator page; send its turbocharger complete, with the boost-control hardware attached as it came off. Every electronic actuator we rebuild, across all makes, is listed on our electronic turbo actuator repairs page, and our Hella actuator index finds one by its part number.

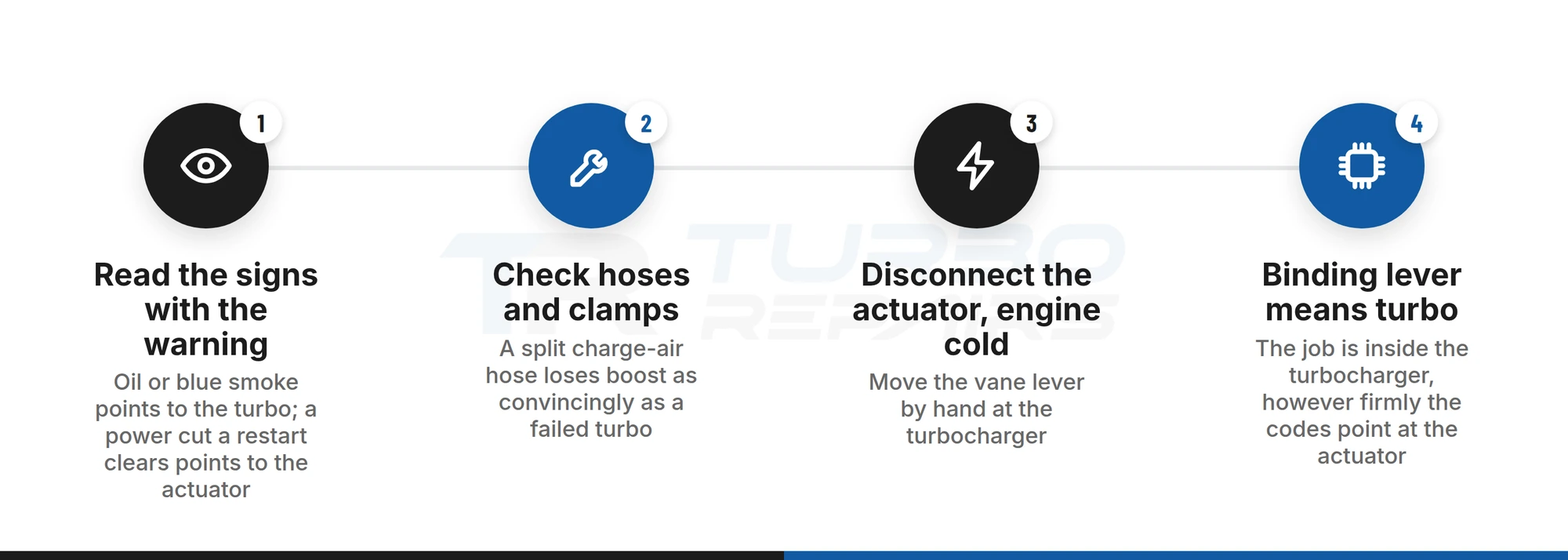

Turbo or Actuator? Which Page You Need

A Ford that loses boost shows the same warning lights and the same limp mode whichever part has failed, so the warning alone will not choose the page. What comes with it usually does.

• Oil where it should not be, blue smoke, or a siren that climbs with engine speed. These start in the turbocharger’s bearings and seals. Read the turbo page for your engine.
• A power cut that a restart puts right for a while, with boost-control codes stored. Suspect the control side first: the actuator, its plug and its wiring. Read the actuator page.
• Lost power with neither. Check the charge-air hoses and clamps before either part comes off, because a split hose loses boost as convincingly as a failed turbo.

The deciding check is made by hand at the turbocharger, with the actuator disconnected and the engine cold, and each actuator page describes it for its own engine. A vane lever that binds puts the job inside the turbocharger, however firmly the codes point at the actuator. For the wider picture, see our guides to turbo failure symptoms and turbo actuator symptoms.

Getting the unit to us

Complete the online Repair Form with the registration, the engine, any fault codes and a photograph of the label. Then seal every port, pack the unit in a rigid box and post it to Unit 102 Reaver House, 12 East Street, Epsom, Surrey, KT17 1HX, United Kingdom. Garages send units in the same way owners do, and our FAQs cover packing and postage.

Ford Turbo Repair FAQ

Final Thoughts

A Ford turbo search starts wide because Ford’s engines and models cross: one engine under many badges, and one badge over several engines. Put the model and the engine together and the table narrows to a single row, which the label on the unit then confirms.

The second question is which part to send, and it costs nothing to answer while everything is still on the car. Let the signs point you to a page, let the hand check on that page confirm it, and unbolt only the part that failed.
