Chrysler 300C 3.0 CRD Electronic Turbo Actuator Repair

The hardest thing about this fault on a 300C is that it is usually absent when anybody looks at it. The car accelerates cleanly from cold; the warning light and the limp mode arrive after a stretch of sustained driving, and by the time it is on a ramp with a diagnostic tool plugged in, everything has cooled and everything behaves.

Why a 300C Actuator Fault Comes and Goes with Engine Temperature

Suppliers who stock this exact unit describe the 300C actuator as cutting out and losing power when hot, with the engine management or glow-plug light coming on and the car dropping into limp home mode. Our own record of the same fault describes it from the other end: intermittent loss of power under acceleration, hesitation and judder.

Those are one failure at two stages. A component that is worn but not yet dead still has margin in it, and heat consumes that margin — so the unit does its job on a cold morning and stops doing it after twenty minutes at working temperature.

Which makes when the fault appears more informative than the fault itself. Every listing for this repair carries the same symptom list; almost none say what the timing means.

Write your own pattern down before anything is unbolted: how many minutes of what sort of driving, whether it clears, how quickly it returns. That description is evidence, and it survives being told the car tested fine.

What Heat Does to the Inside of the Actuator

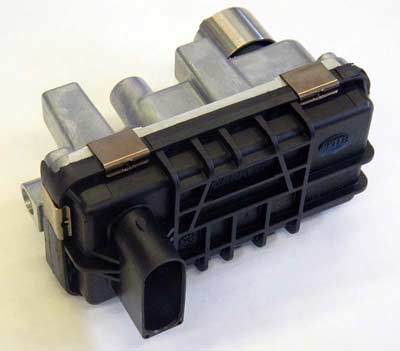

The actuator is a small direct-current motor driving a reduction gear train, a position sensor reporting where the output arm has reached, and a circuit board doing the commanding. All four sit in one housing bolted to an exhaust-side casing, cycling between engine-bay heat and cold mornings for the life of the car — and that cycling does not fall evenly on them.

The motor is the component most likely to give you a hot-only fault. Brushes shorten, commutation degrades, and the resistance of a winding rises with its temperature. A motor with margin left produces enough torque cold and falls short of it hot — precisely the behaviour the car is showing you.

The circuit board is the other one. Joints and printed tracks that have expanded and contracted for years develop hairline fractures that open under vibration and close again as everything settles. A fault that has gone by morning and returns after twenty minutes is the signature of a connection that is only intermittently a connection.

The position sensor and the gear train behave differently. A worn sensor track reports a position the arm is not in, and does so cold as readily as hot. Stripped gear teeth are permanent: a car that is well again tomorrow morning has not stripped its gears, and one that has is not going to improve.

Map your symptom onto that list before spending anything — two of the four explain a heat-dependent fault, and two do not.

Why a Cold Diagnostic Plug-In Finds Nothing

A car brought in for this is almost always cold by the time it is tested. The tool reads yesterday’s stored codes, the actuator is commanded and sweeps normally, live boost matches what is asked for, and nothing disagrees. All of that is true, and none of it is a test of the fault, because the fault is not happening.

Two things go wrong from there. The first is being told there is no fault — a statement about the conditions of the test rather than about the car. A sweep that passes on a cold unit is the expected result on a marginal one; it is not a clearance.

The second is a part sold on the strength of a stored code alone. A boost-control code describes a circuit and an outcome, not the component that failed, and on this car the actuator, the vane mechanism it drives and the wiring between them all sit behind the same code.

The way past both is to stop treating “it only does it when it is hot” as a nuisance that makes diagnosis awkward. It is a diagnostic fact, and it tells you when the test has to happen.

Capturing Evidence That Survives the Diagnosis

None of this needs equipment a garage does not already own. What it needs is timing, and one decision made in advance about what not to do.

1. Read the car hot, at the moment it limps, before the ignition is cycled. Live data taken while the fault is present is worth more than anything recovered afterwards, because by then the unit has cooled and recovered. Book the test at the end of a run.
2. Let nobody clear the codes until the freeze-frame data is recorded. Freeze frame is captured at the instant the code sets — engine speed, load, temperature and the readings that were live at the time. Clearing the fault destroys the only snapshot taken while the car was faulty.
3. Get commanded boost against actual boost while it is limping. The gap between what the control unit asked for and what the engine measured is what triggered the limp mode, and seeing it live confirms the demand is genuinely not being met.
4. Note the actuator’s own position feedback if the tool shows it. A commanded position the feedback never arrives at, hot, is the most direct evidence available that the fault sits inside the actuator rather than upstream of it.
5. Record the cold test too, as a result rather than a dead end. “Swept normally at ambient temperature, failed after twenty-two minutes of motorway” is far stronger than either half alone.
6. Write the pattern down in plain terms. Time or distance before it goes, what sort of driving, whether it clears, how long until it returns, whether it has ever done it cold.

Send that with the actuator. A unit posted in with a description of when it misbehaves is a different proposition from one posted in with a code number.

The Codes a 300C Stores, and What They Leave Open

Four codes account for most of these cases. They describe a circuit and an outcome — not one names a component, and not one mentions a temperature.

Some tools print a charge air pressure control description against the same fault; that is a difference in wording, not in what has been detected. Either way a stored code only says the control unit gave up at some moment in the past. It records no engine temperature and separates no components — only data captured while the fault is live does that.

When the Heat Pattern Points Somewhere Other Than the Actuator

A hot-only fault narrows the field, but two things are worth eliminating before a unit goes in the post — along with the obvious check that the connector is clean, properly home and has supply and earth at it.

The vane mechanism the actuator drives. Soot and oil bake onto the variable-nozzle vanes until they stiffen, and the actuator is then commanded against a mechanism that will no longer move freely. Unbolt it and sweep the arm through its full range by hand: free movement end to end means the vanes are moving, while binding means no work on the actuator will cure the car. That argument is set out in full on our Jeep Grand Cherokee 3.0 CRD actuator page, and applies unchanged here because the engine and turbocharger are the same.

A boost leak that opens up hot. A split intake pipe, a perished joint or a clamp that has lost its grip can seal well enough cold and leak once everything has expanded and the rubber has softened. That gives the same underboost code and the same hot-only pattern, and it costs nothing but a proper look.

If the sweep is free and the pipework sound, the heat pattern is pointing at the actuator. If the sweep binds, this is a turbocharger job rather than an actuator one — that work sits under turbo repairs, and we would rather say so than return a rebuilt unit to a fault it cannot fix.

The Other Actuator on This Engine

This V6 carries more than one electrically operated actuator, and the second causes confusion because it also causes power loss. On the intake side sits an actuator operating flaps in the inlet tract — nothing to do with the turbocharger, not attached to it, and not a turbo actuator repair. The part this page is about is bolted to the turbocharger itself, with a short arm linking it to a lever on the turbine housing. If yours is the intake one, none of the references or codes here belong to it, and it is worth telling us what you are looking at first.

Elsewhere the same word covers two different components on the turbocharger itself — a vacuum can and an electronic module — as set out on our Ford Mondeo actuator page. On a 300C 3.0 CRD it is the electronic type, with a plug on it.

The References on Your Own Casing

Wipe the housing, take a torch to it, and you will normally find more than one identifier. Catalogues record these numbers in combination, and the combination is what identifies a unit — the vehicle name does not, because the engine is shared with several other cars and vans.

Read that as what the trade records, not as a promise about your car: no line in it is a fitment claim, and no year is attached to any of them, because the catalogues themselves disagree about the span. Two neighbours take it further — the Jeep Commander page on why a part catalogued under another model name can still be right on this shared engine, and the Mercedes CLS page on one car carrying several valid reference combinations.

What a Rebuild Renews, and Why That Matters on a Heat Fault

A heat-dependent fault has an awkward property: the thing that has worn is still working, most of the time. That is why resetting or cleaning a unit like this buys months rather than years — the wear is still in the part when it goes back on the car, and the same twenty minutes of motorway will expose it again.

So we do not clean and reassemble. The components heat cycling consumes are renewed: the motor and its brushes, the reduction gear train, the position sensor and the seals. The board is reworked rather than wiped over, because a fractured joint is not a cleaning problem. Where the original design has a known weakness the replacement is uprated rather than like-for-like, so the unit meets or exceeds original specification instead of restarting the same clock.

What we do not claim is a way of reproducing your twenty-minute motorway run on a bench. The honest answer to a fault that only appears hot is not a cleverer test — it is renewing the parts the heat wears, so the margin the fault ate into is put back. Each unit is then calibrated across its full sweep and proven on the bench before it is boxed.

Our Chrysler 300C Electronic Turbo Actuator Rebuild

It is a mail-in service, carried out in our own workshop at Unit 102 Reaver House, 12 East Street, Epsom, Surrey, KT17 1HX, United Kingdom, by turbo specialists and electronic engineers who work on these units daily. The turbocharger stays on the engine — the actuator unbolts from the outside of it, as set out on our Mercedes C-Class page for the same engine family.

1. Send the description before the part. Registration, the codes stored, how long the engine runs before the fault arrives, whether it clears, any data captured while it was limping, and every reference legible on the housing.
2. Remove the actuator and post it in. Pack it in bubble wrap or foam inside a rigid box — paper and cloth protect neither a moulded housing nor a connector.
3. We identify it and test it as received. The reference set is checked against the engine it came off and the unit is tested before it is opened, so what we report is what genuinely failed.
4. We rebuild it at component level. Motor and brushes, gear train, position sensor and seals renewed as required, the board reworked, and components with a known design weakness uprated rather than refitted.
5. We calibrate it, prove it and return it. The unit is cycled through its full travel and checked against live boost targets before sign-off, then sent back ready to bolt straight on — no coding, nothing to set up.

Rebuilds start from £100, with the exact figure confirmed once your unit has been identified and bench-tested, so it is known before any work goes ahead. Turnaround is typically one to two working days from the unit reaching the workshop, plus postage each way, and every rebuild carries a lifetime, unlimited-mileage warranty — no mileage cap, no expiry date. Units are accepted from anywhere in the UK and internationally. The full range sits on our electronic turbo actuator repair service, and you can get in touch before posting if you are sending from overseas.

Chrysler 300C Turbo Actuator Repair FAQ

Answers specific to this repair are below; broader questions about postage, turnaround and warranty are covered in our full FAQs.

Final Thoughts

An intermittent fault is not a vaguer version of a permanent one. It is a specific, readable stage of a specific failure, and on a 300C the fact that the car misbehaves hot and recovers cold rules more in and out than the code number does. The owners who get this repair right stop apologising for not being able to reproduce the fault on demand, and start recording exactly when it happens.

Do that, capture one honest reading while the car is limping, and the rest follows: whether the vanes are free, whether the pipework is sound, and whether the part that has run out of margin is the one bolted to your turbocharger. If it is, it is worn rather than wrong — and worn can be renewed.
